Originally developed as a functional extension of Scanjet PSM Marine’s VPM Digital Tank Gauging Systems, our Draught, Trim & Heel Display System has evolved into a dedicated solution for the precise measurement and clear display of vessel draught.
A Dedicated Monitoring System

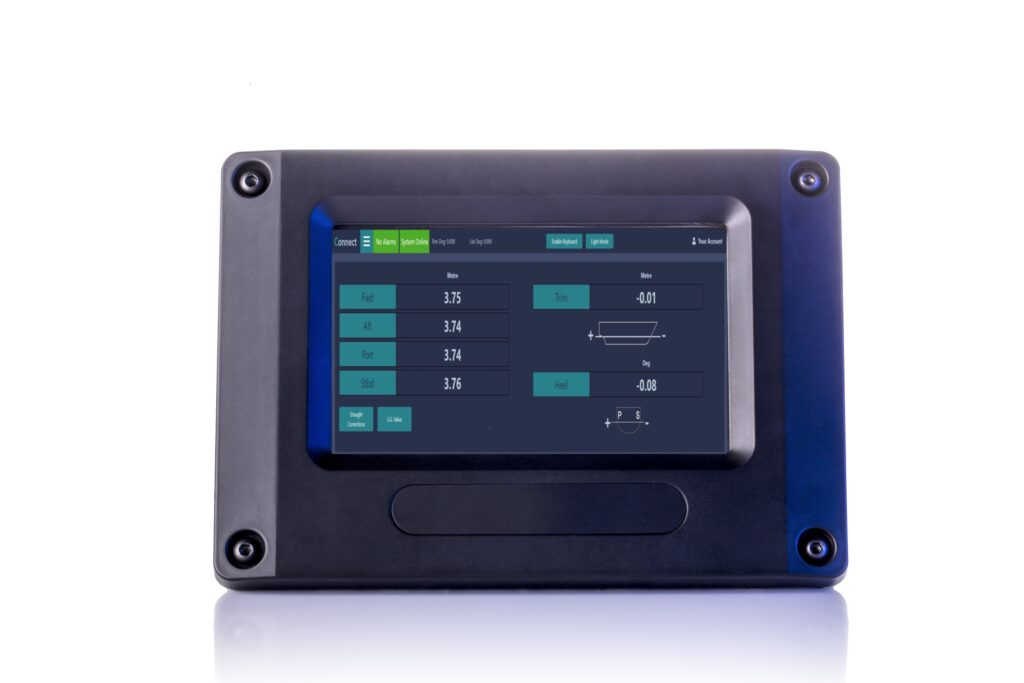

At the centre of the system is the VPM4300 Series display, providing a full-colour graphical and textual presentation of vessel draught values.
The display shows:
- Real-time draught measurements
- Averaged draught values over a user-selectable period, for a more stable and quantifiable reading, regardless of vessel size or prevailing sea conditions
A PSM APT1000 hydrostatic pressure transmitter, mounted to the vessel hull via a sea valve, accurately measures the head pressure of seawater. The VPM system offers flexible and easy configuration, including:
- One-, two-, or four-point draught measurement setups
- Simple interconnection using Modbus multi-drop capability, minimising wiring
- Single power source requirement at the display, simplifying installation
The VPM system processes the hydrostatic pressure readings from each transmitter and applies the necessary corrections to ensure that displayed values are accurately referenced to the vessel’s Forward and Aft draught marks.
Depending on the system configuration:
- Two-draught sensors (Forward and Aft) – vessel trim can be displayed
- Four-draught sensors (Forward, Aft, Port and Starboard Midships) – vessel heel angle can also be included
Simplified Installation, Configuration and Integration
The VPM system is designed for easy installation, minimal wiring and seamless integration:
- Modbus RS485 multi-drop – connect multiple transmitters with a single line
- Single power supply – reduces installation complexity
- Optional inclinometers – replace draught transmitters for trim/heel-only measurements via a single cable
Marine Type Approved and Field Proven
All system components are Marine Type Approved and have been proven in a wide range of marine applications, including:

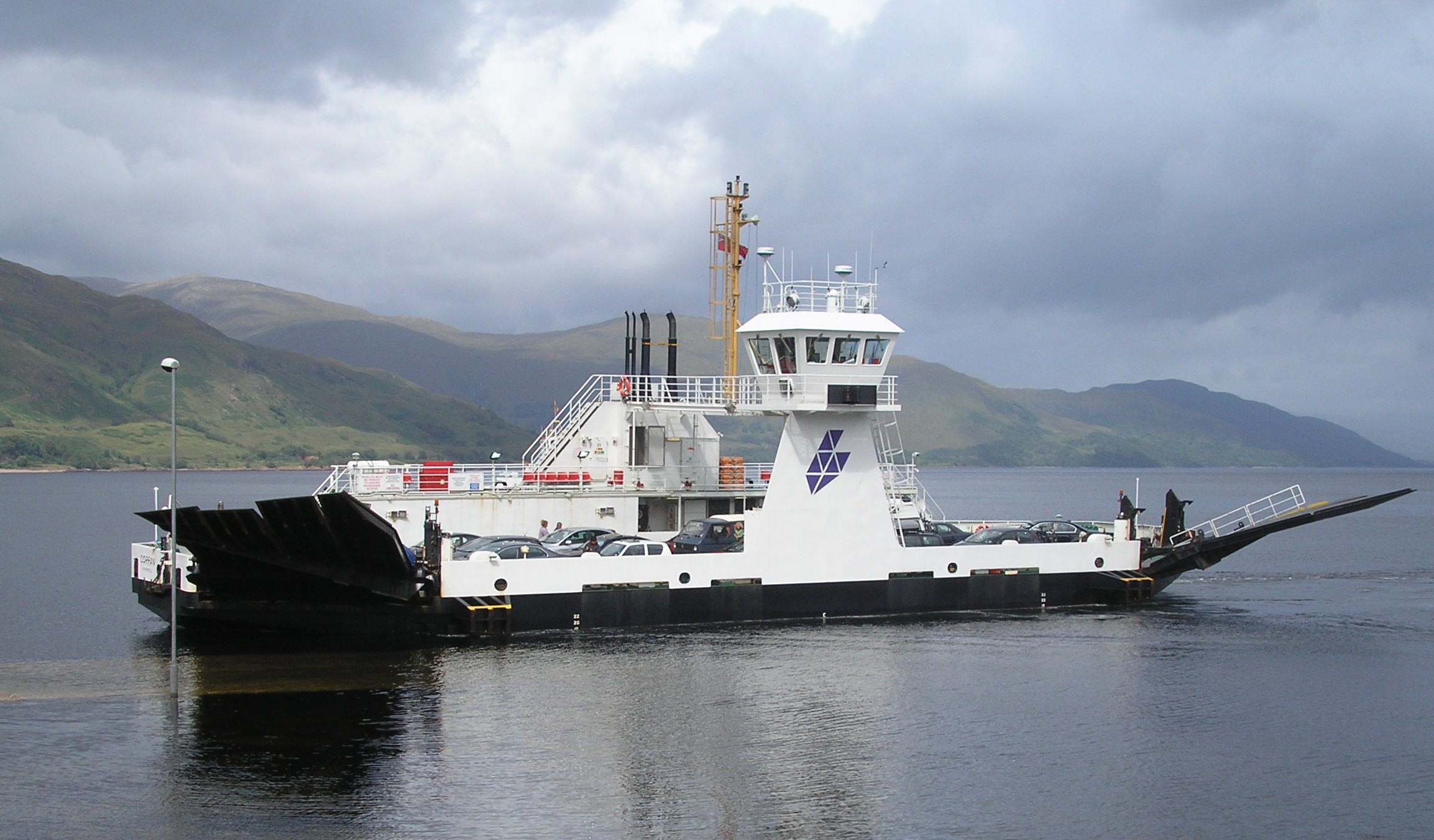

- Small Ro-Ro ferries
- Mega yachts
- Naval vessels

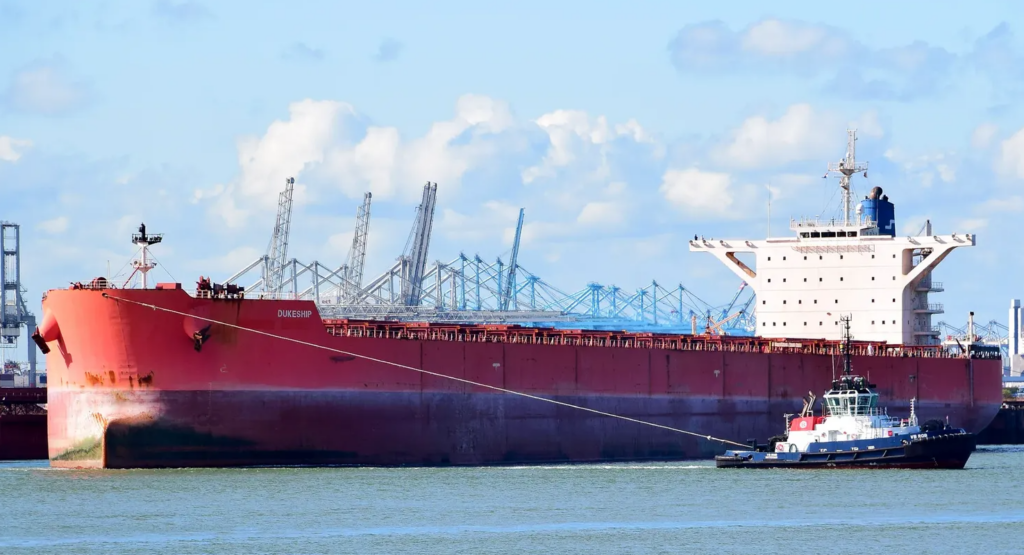

- A series of eight Capesize VLBC vessels for the Seaenergy fleet
If you would like more information on our Draught, Trim & Heel Display Systems and how they can work for your vessels, then contact us today or visit our website.
